pht9
Boy Racer
Any graphs showing the power & torque curves ?
sure, pop in and see me :finger
Historic 911 Rally build
- Thread starter pht9
- Start date
sure, pop in and see me :finger
oldtimer
Newbie
How about Thursday morning , if its fine will bring the early car as dyno'd below
http://youtu.be/8GsAPuKhc_E
is this i have seen?
pht9
Boy Racer
looks great and many congratulations
good to hear the engine works ace
good to hear the engine works ace
Yes Thomas, not much goes on that you don't know about
wtdoom
The Merciless

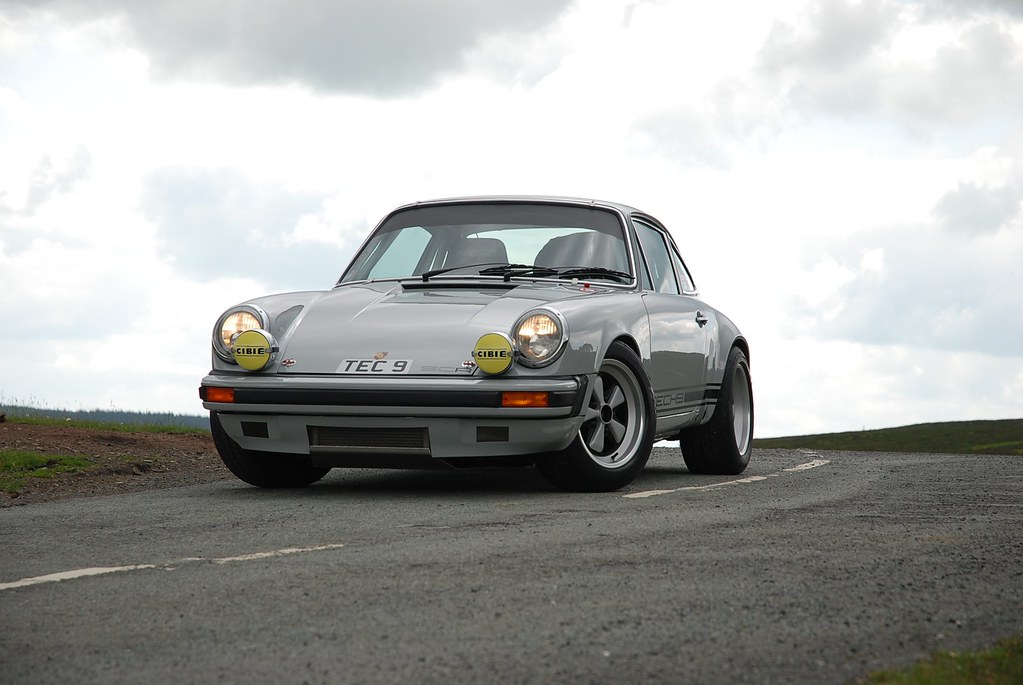

Had a great day out in North Wales yesterday with one of the magazines
One for all the old school Pork fans
Bugger!
Was there with evo , we could have linked up . Would have loved to have seen that
wtdoom
The Merciless
No , how odd.
However day 1 we were not on the triangle . We were just over the way , ironically with evo !
Pete
King Kong
StunningHad a great day out in North Wales yesterday with one of the magazines
One for all the old school Pork fans
pht9
Boy Racer
Did you run the triangle ?, mid section is F**ked up with resurface, stones and tar
, stay away from there for a few days anyone else reading this, its not good for the paintwork
pht9
Boy Racer
For those of you that love a bit of old Pork.......
Its been a while since I posted on the build thread of my SCR, I had a few requests to share the details of the engine. Having successfully completed numerous events, trouble free over the past few years in my car, we have now started to market this engine and have just finished our first client build, I enclose some of the build details. This engine differs from my engine, in that its twin-plugged, my car being built to FIA 3062 homologation where only single plug allowed - I hope you enjoy the content
Engine is based on a 911SC - retains 3.0 Capacity

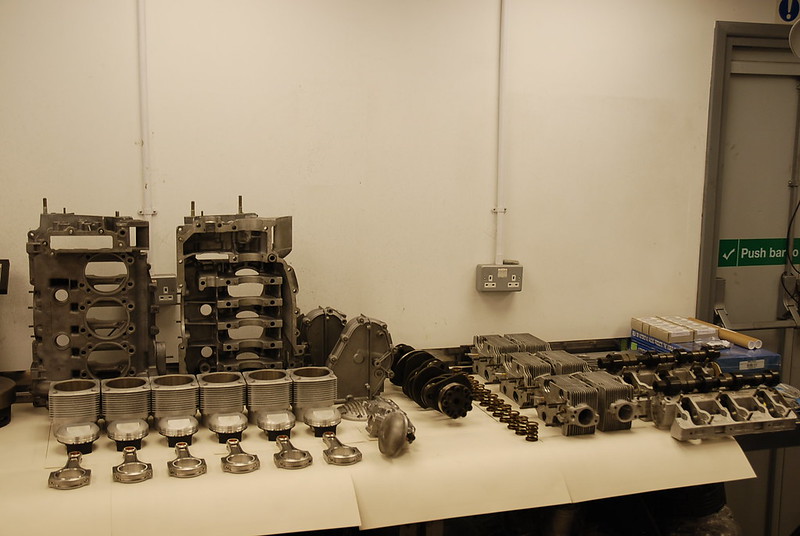

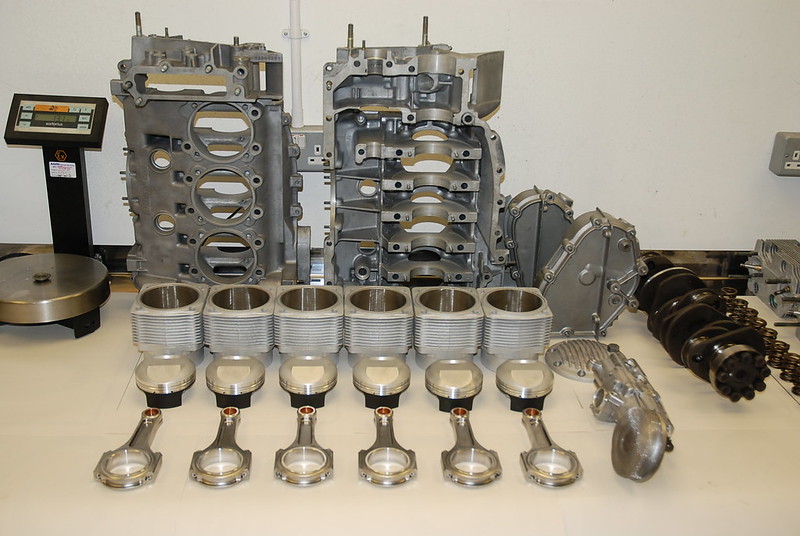

Layout of components, prior to build

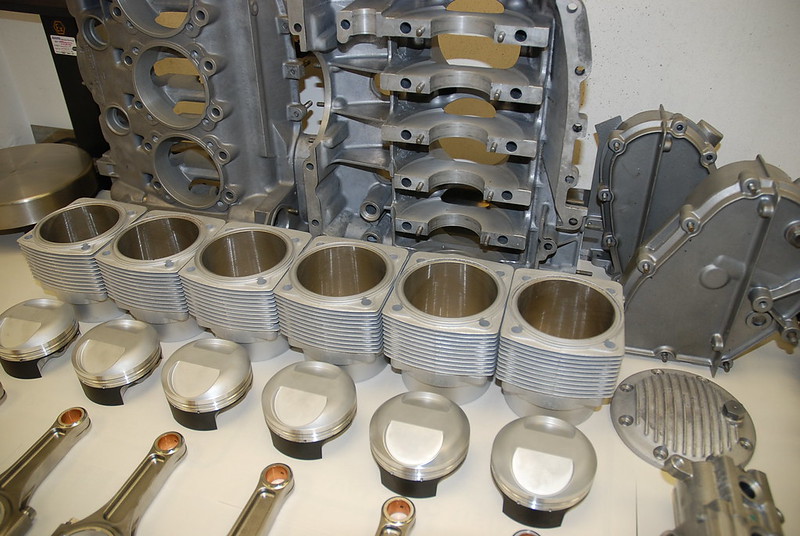

Tech 9 Custom pistons and conrods
Mahle Cylinders, machined for accuracy (bore perpendicular to mounting faces) then plated with ceramic composite

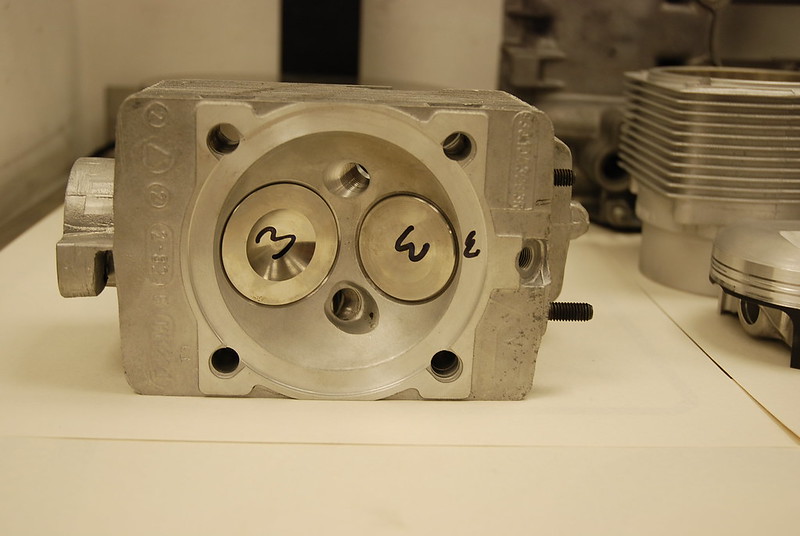

Cylinder heads twin plugged and new sodium filled Intake and Exhaust valves installed

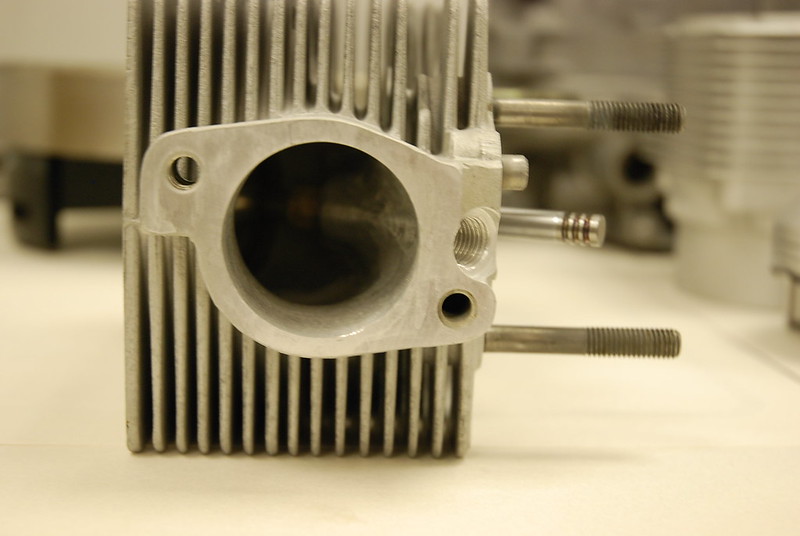

Ports machined for flow and accuracy of mounting to intake manifolds, Injector ports added for MFI injectors

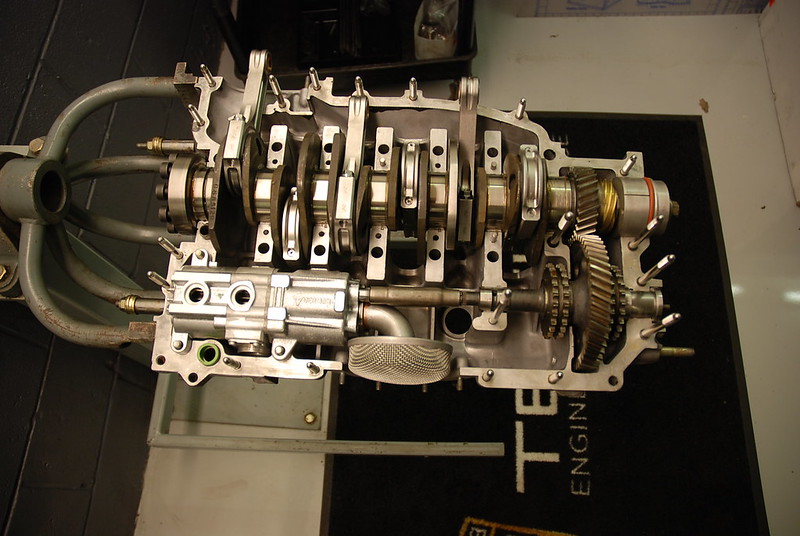

Heart of the beast ! – here you can see the large capacity GT3 Oil pump, one piece steel Intermediate gear, Crank and con-rod assembly, cases with shuffle-pins installed on the main webs. To ensure this lot don’t burst out, secured with ARP Porsche specific engine fasteners throughout

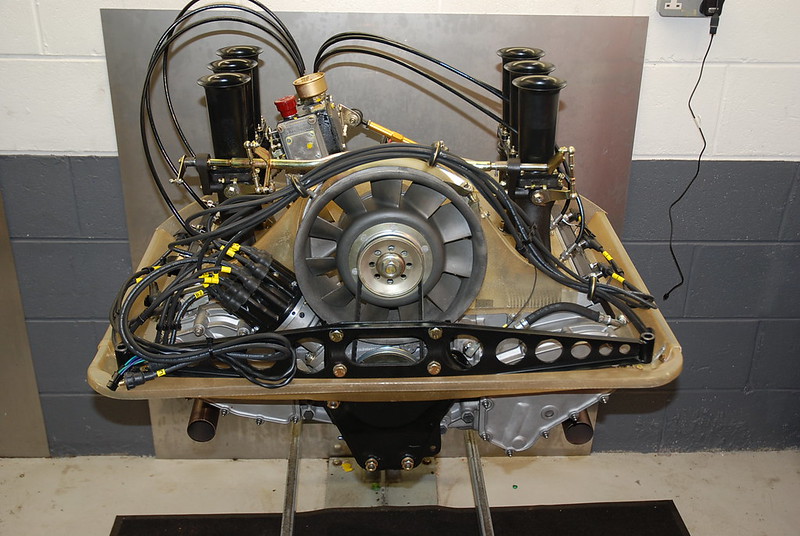

Build completed

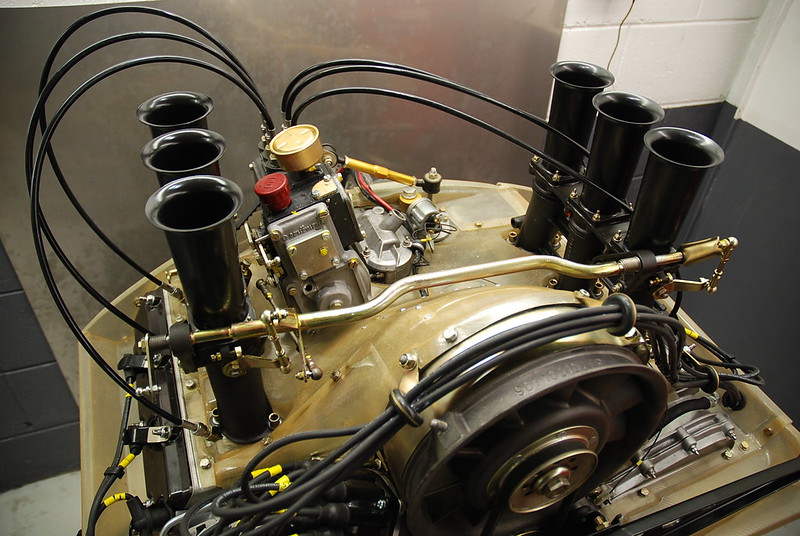

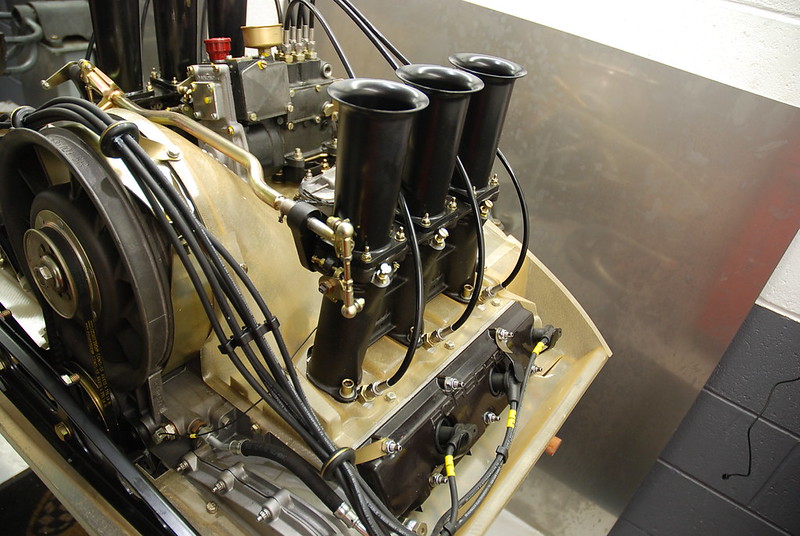

Details, Details……. Magnesium High Butterfly 50mm Intake system, MFI Red Top RSR Fuel Pump

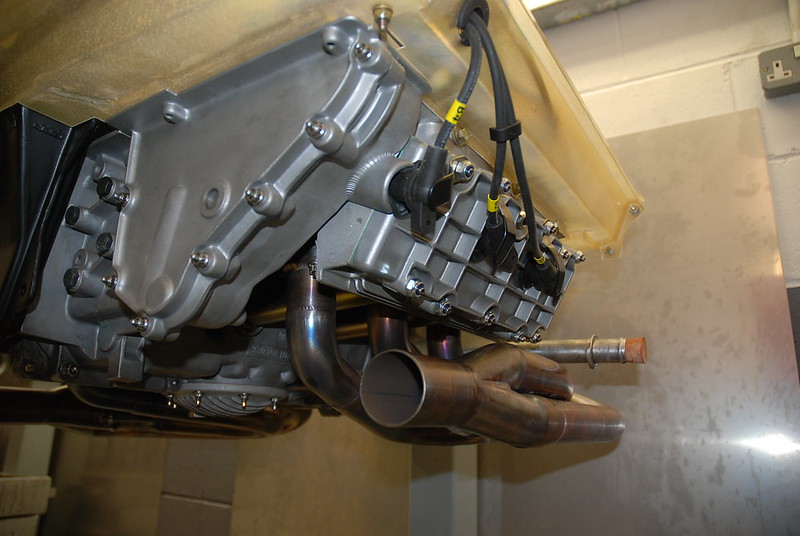

Tech 9 Custom exhaust system with equal length stepped headers, with merge collectors

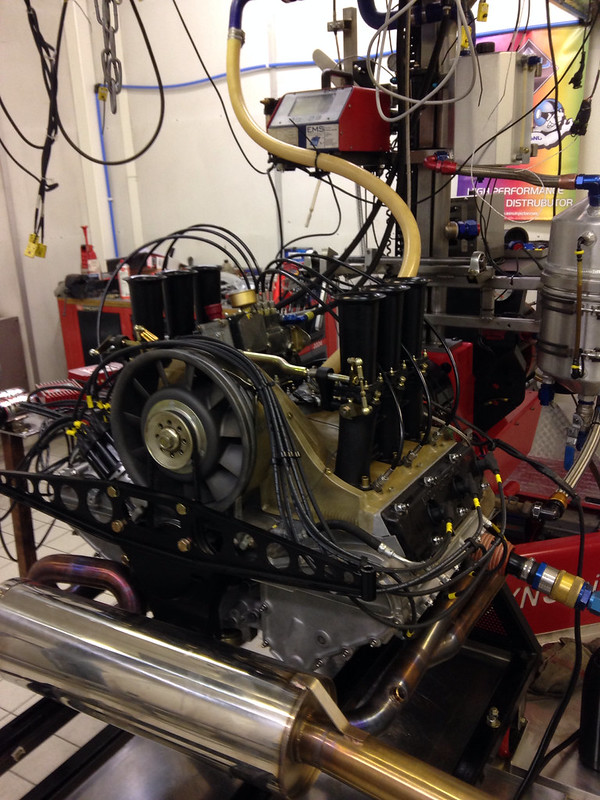

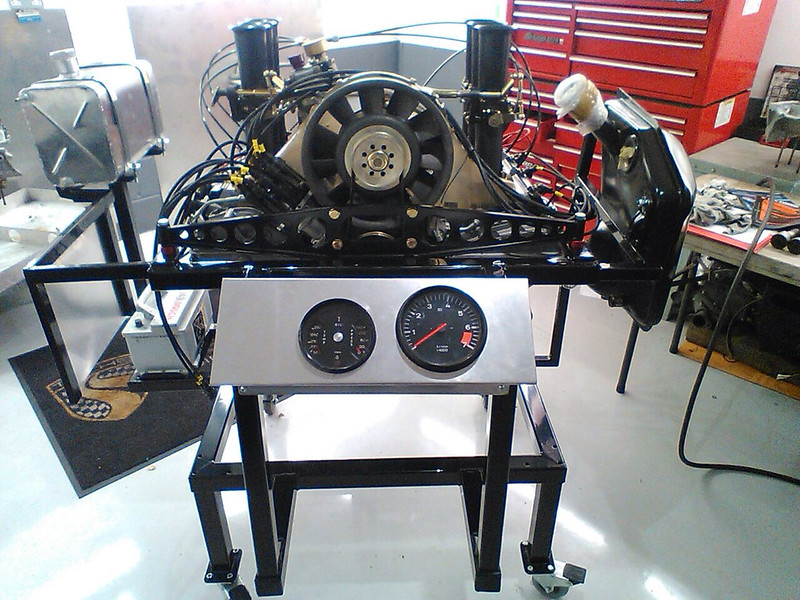

Pre-Dyno – Installed on our engine test bed to bed in camshafts and set ignition timing, set throttle butterflies etc
Dyno testing – Final results 308bhp @ 7600rpm with 233 ft/lbs torque @ 5300rpm with silencing requirements met to allow for MSA event testing
Built as a rally specification engine with good low-mid range torque characteristics, the torque curve is very flat. In race/circuit specification the power output would be closer to 340bhp (any takers ! ???
)
Its been a while since I posted on the build thread of my SCR, I had a few requests to share the details of the engine. Having successfully completed numerous events, trouble free over the past few years in my car, we have now started to market this engine and have just finished our first client build, I enclose some of the build details. This engine differs from my engine, in that its twin-plugged, my car being built to FIA 3062 homologation where only single plug allowed - I hope you enjoy the content
Engine is based on a 911SC - retains 3.0 Capacity
Layout of components, prior to build
Tech 9 Custom pistons and conrods
Mahle Cylinders, machined for accuracy (bore perpendicular to mounting faces) then plated with ceramic composite
Cylinder heads twin plugged and new sodium filled Intake and Exhaust valves installed
Ports machined for flow and accuracy of mounting to intake manifolds, Injector ports added for MFI injectors
Heart of the beast ! – here you can see the large capacity GT3 Oil pump, one piece steel Intermediate gear, Crank and con-rod assembly, cases with shuffle-pins installed on the main webs. To ensure this lot don’t burst out, secured with ARP Porsche specific engine fasteners throughout
Build completed
Details, Details……. Magnesium High Butterfly 50mm Intake system, MFI Red Top RSR Fuel Pump
Tech 9 Custom exhaust system with equal length stepped headers, with merge collectors
Pre-Dyno – Installed on our engine test bed to bed in camshafts and set ignition timing, set throttle butterflies etc
Dyno testing – Final results 308bhp @ 7600rpm with 233 ft/lbs torque @ 5300rpm with silencing requirements met to allow for MSA event testing
Built as a rally specification engine with good low-mid range torque characteristics, the torque curve is very flat. In race/circuit specification the power output would be closer to 340bhp (any takers ! ???
)
martin thomas
Faster Than Angus!
Lovely build mate!!!!
leogemelli
The Terminator
Combien ?
pht9
Boy Racer
Ballpark £60k inc VAT, run in/set up ready to install. Includes donor SC engine, full ignition system, loom and all ancilliaries
If anyone is interested, I can send a detailed quotation, delivery 10 weeks.
